PIPING DESIGN ENGINEER (WtE & TPP),       Asst. Manager PROPOSAL ENGINEERING - WtE Technology

BIWASE WtE PLANT IN VIETNAM

Plant Location:   Binh Duong, Vietnam
Plant Capacity:   1 x 500 TPD
Fuel:                          Municipal Solid Waste (MSW)
Year:                          2025
Scope: Engineering, Supply, Supervision and Guaranties:
ENVIROPOWER™ Air Cooled Reverse Acting Grate
SECOLAB TM Dry type Flue Gas Treatment system
SNCR Package

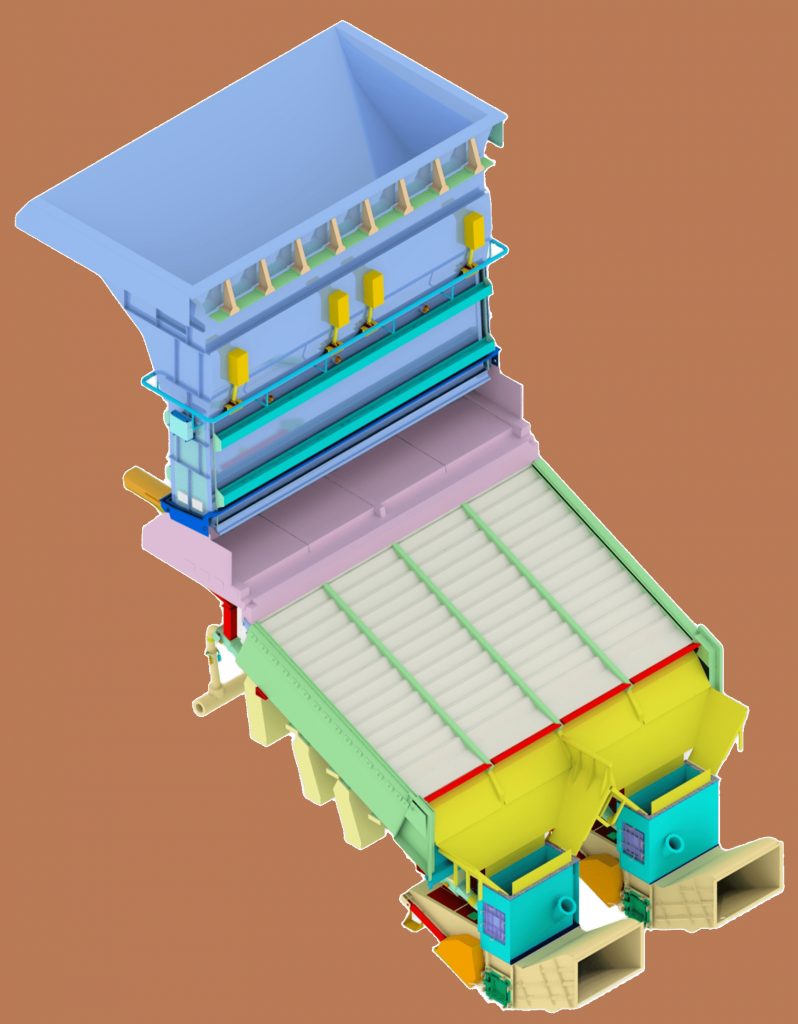

MARTIN ENVIROPOWER™ Grate

  • Reverse Acting Grate
  • Air Cooled type
  • 500 TPD @ 2200 Kcal/kg
  • 4 Runs Configuration
  • LHV range – 1200 Kcal/kg to 2400 Kcal/kg
  • Integrated with specially designed uncooled refractory furnace
  • Clinker Weir & Ash Discharger
  • Dedicated PLC

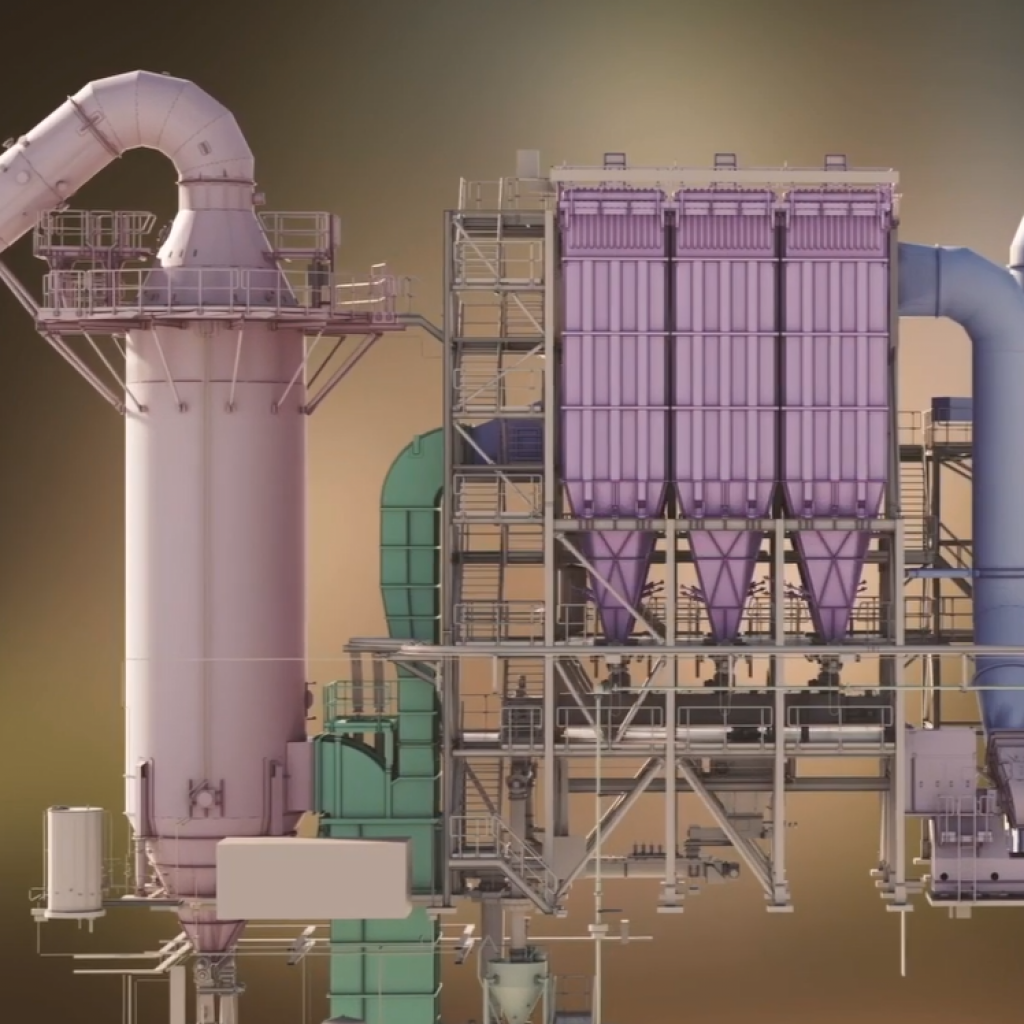

LAB SEMISECOLAB™ Semi-Dry FGT

  • Emission Norms complying VN/EU 2010 standards
  • Conditioning Tower for gas temperature quenching (~140C)
  • Reagent & Residue Silos
  • Reagent Injection system (Hydrated lime & Activated carbon)
  • Patented LABLOOP™ Dry Reactor
  • Bag House Filter designed for online maintenance
  • Recirculation System (reduced reagent consumption)
  • Raw Gas Analyser for stable emission output

    • Detailed Design Engineering for

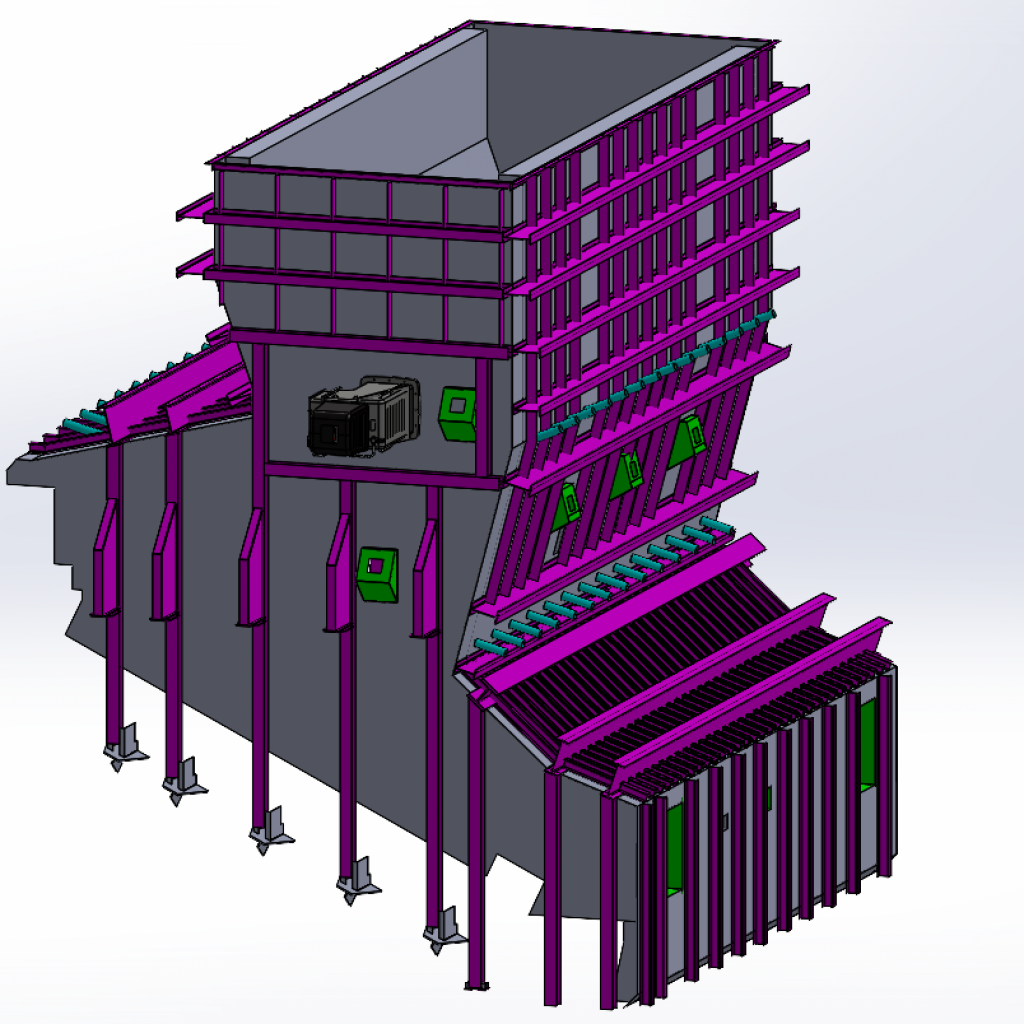

  • Uncooled Refratory Furnace
  • Grate Supporting Structure
  • Grate Access Platforms, Handrails, Stairs & Ladders
  • Boiler Outlet Flue gas Ducting
  • Burner Technical Specification
  • Fans Technical Specification
  • Interface Engineering of Boiler
